Webhooks

Flow Access API uses webhooks to notify your system when important events occur in real time.

Instead of polling our system for updates, we push event data directly to your server whenever something happens — such as a meter sending uplinks, a recharge being completed, or water being fetched.

Webhooks are asynchronous and event-driven.

---

Polling vs Webhooks

Polling

• Your system repeatedly asks Flow for updates
• Increased latency and unnecessary requests
• Not suitable for real-time events

Webhooks

• Flow sends data only when something happens
• Near real-time delivery
• Lower infrastructure and network cost

How Webhooks Work

The webhook delivery flow follows these steps:

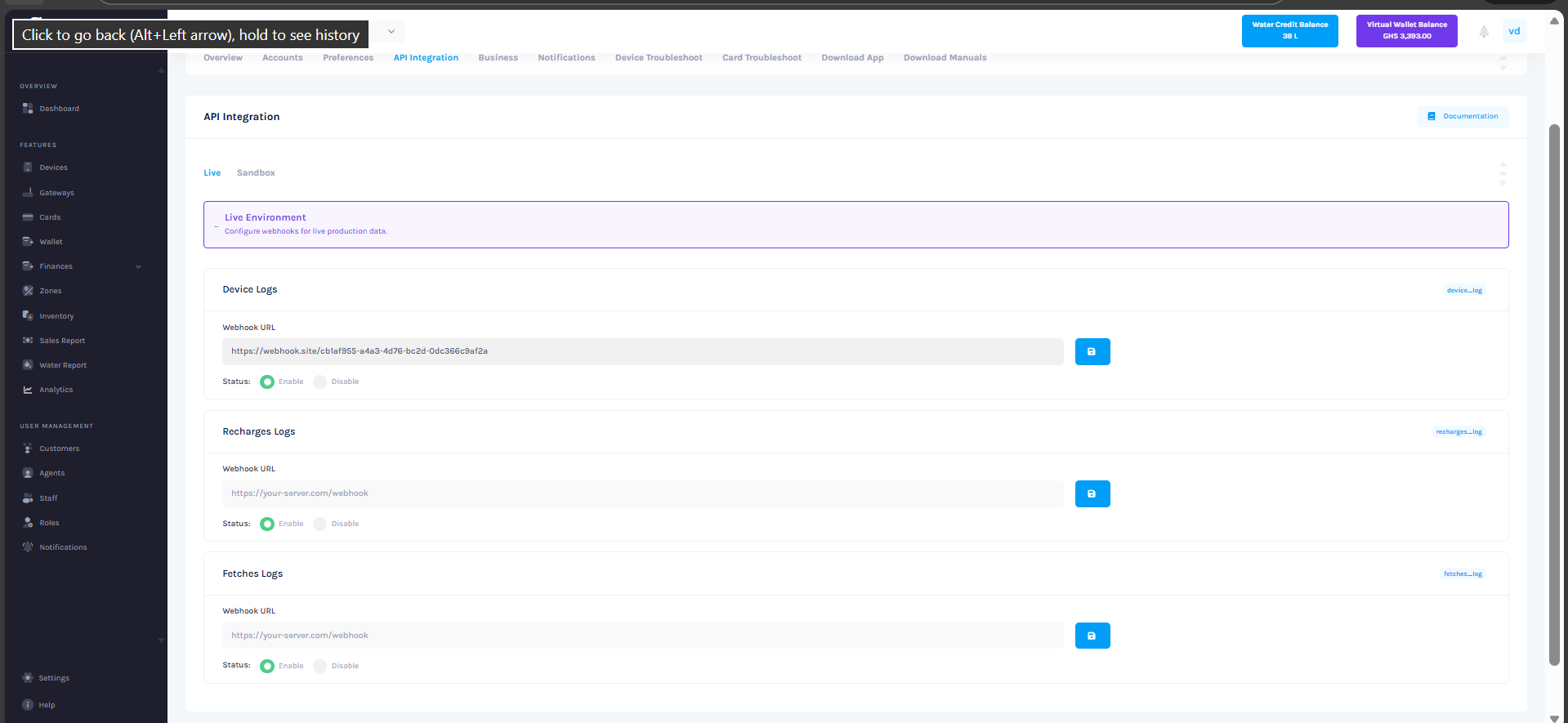

1. Register a Webhook URL When creating or configuring an API client, you provide a webhookURL.

2. An Event Occurs Examples include:

• A meter sends uplink data
• A recharge invoice is created or completed
• A water fetch is recorded

3. Flow Sends a Webhook Flow sends an HTTP POST request with a JSON payload to your webhook URL.

4. Your Server Acknowledges Your server must respond with HTTP 201 Created to confirm successful processing.

---

Important

If your webhook endpoint:

• Returns any status code other than 201 Created, or
• Takes longer than 10 seconds to respond

the webhook delivery is considered failed.

---

When Webhooks Are Sent

Webhooks are sent automatically when Flow processes events from its internal event bus.

You do not need to call any API to trigger webhooks.

Internally, Flow listens to system events and forwards them to the correct client based on:

• Business ID
• Event data type
• Webhook activation status

---

Supported Event Types

Each webhook event has a specific purpose and payload structure.

---

Types of Events

Here are the webhook events currently sent by Flow. We may add more events as we hook into additional actions in the future.

Event	Description
device_log	A device (meter) has sent uplinks
recharges_log	A recharge, invoice has been created, succeeded, or failed
fetches_log	A water fetch transaction has been recorded

---

Device Uplink (device_log)

This event is sent whenever a meter or device sends uplinks data to Flow.

Payload Structure

JSON Payload

{
  "battery1Alarm": false,
  "battery2Alarm": false,
  "eeAlarm": false,
  "emptyTubeAlarm": false,
  "flowRate": 1.23,
  "overRangeAlarm": false,
  "pipeLeakageAlarm": false,
  "pipeBurstAlarm": false,
  "receivedAt": "2025-12-15T10:00:00Z",
  "deviceTime": "2025-12-15T09:59:58Z",
  "rechargeBalance": 1234.5,
  "rechargeTimes": 10,
  "reverseFlowAlarm": false,
  "address": "device-serial-number-123",
  "totalConsumption": 54321.9,
  "valveStatus": 1,
  "waterTemperature": 25.5,
  "waterTemperatureAlarm": false,
  "valveMode": 1,
  "closeThreshold": 100,
  "lastPurchaseCredit": 50.0
}

Go Struct

type DeviceMeterUpLinkClientDomain struct {
    Battery1Alarm         bool       `json:"battery1Alarm"`
    Battery2Alarm         bool       `json:"battery2Alarm"`
    EeAlarm               bool       `json:"eeAlarm"`
    EmptyTubeAlarm        bool       `json:"emptyTubeAlarm"`
    FlowRate              float64    `json:"flowRate"`
    OverRangeAlarm        bool       `json:"overRangeAlarm"`
    PipeLeakageAlarm      bool       `json:"pipeLeakageAlarm"`
    PipeBurstAlarm        bool       `json:"pipeBurstAlarm"`
    ReceivedAt            *time.Time `json:"receivedAt"`
    DeviceTime            *time.Time `json:"deviceTime"`
    RechargeBalance       float64    `json:"rechargeBalance"`
    RechargeTimes         int64      `json:"rechargeTimes"`
    ReverseFlowAlarm      bool       `json:"reverseFlowAlarm"`
    Address               string     `json:"address"`
    TotalConsumption      float64    `json:"totalConsumption"`
    ValveStatus           float64    `json:"valveStatus"`
    WaterTemperature      float64    `json:"waterTemperature"`
    WaterTemperatureAlarm bool       `json:"waterTemperatureAlarm"`
    ValveMode             int64      `json:"valveMode"`
    CloseThreshold        int64      `json:"closeThreshold"`
    LastPurchaseCredit    float64    `json:"lastPurchaseCredit"`
}

Field Descriptions

Field	Type	Description
battery1Alarm	boolean	Alarm status for battery 1.
battery2Alarm	boolean	Alarm status for battery 2.
eeAlarm	boolean	EEPROM alarm.
emptyTubeAlarm	boolean	Alarm for an empty tube.
flowRate	number	Current flow rate of water.
overRangeAlarm	boolean	Alarm for when the flow is over range.
pipeLeakageAlarm	boolean	Alarm for a detected pipe leakage.
pipeBurstAlarm	boolean	Alarm for a detected pipe burst.
receivedAt	string	Timestamp (ISO 8601) when the server received the data.
deviceTime	string	Timestamp (ISO 8601) from the device itself.
rechargeBalance	number	The current remaining water credit balance.
rechargeTimes	integer	The total number of times the device has been recharged.
reverseFlowAlarm	boolean	Alarm for water flowing in the reverse direction.
address	string	The unique serial number or identifier for the device.
totalConsumption	number	Total water consumption recorded by the device.
valveStatus	number	The current status of the valve.
waterTemperature	number	The temperature of the water.
waterTemperatureAlarm	boolean	Alarm for water temperature exceeding limits.
valveMode	integer	The operational mode of the valve.
closeThreshold	integer	The threshold at which the valve will close.
lastPurchaseCredit	number	The amount of the last credit purchase.

---

Recharge Receipt (recharges_log)

This feed provides information about sales transactions, specifically when a user recharges their water credit balance.

Payload Structure

JSON Payload

{
  "id": "recharge-id-456",
  "amount": 20.0,
  "litres": 2000.0,
  "pricePerLitre": 0.01,
  "currency": "USD",
  "paymentMode": "MOBILE_MONEY",
  "paymentType": "PREPAID",
  "status": "COMPLETED",
  "reason": "",
  "serialNumber": "device-serial-number-123",
  "deviceType": "METER_V1",
  "volume": 2000,
  "device": {
    "id": "device-id-789",
    "name": "Main Street Meter",
    "serialNumber": "device-serial-number-123",
    "status": "ACTIVE",
    "category": "RESIDENTIAL",
    "coordinate": {
      "latitude": -1.286389,
      "longitude": 36.817223
    },
    "zone": {
      "id": "zone-id-abc",
      "name": "Downtown",
      "location": "Nairobi",
      "currency": "KES",
      "pricePerLitre": 1.2,
      "supportPhoneNumber": "+254700000000"
    }
  },
  "card": {
    "id": "card-id-xyz",
    "serialNumber": "card-serial-12345",
    "type": "NFC_CARD",
    "linkedAt": "2025-12-15T10:00:00Z",
    "createdAt": "2025-12-15T10:00:00Z",
    "active": true,
    "customer": {
      "id": "user-id-def",
      "firstName": "Jane",
      "lastName": "Doe",
      "username": "janedoe",
      "phoneNumber": "+254712345678",
      "emailAddress": "jane.doe@example.com"
    }
  },
  "user": {
    "id": "user-id-def",
    "firstName": "Jane",
    "lastName": "Doe",
    "username": "janedoe",
    "phoneNumber": "+254712345678",
    "emailAddress": "jane.doe@example.com"
  },
  "performedBy": {
    "id": "user-id-ghi",
    "firstName": "John",
    "lastName": "Smith",
    "username": "johnsmith",
    "phoneNumber": "+254787654321",
    "emailAddress": "john.smith@example.com"
  },
  "completedAt": "2025-12-15T11:30:00Z",
  "createdAt": "2025-12-15T11:29:00Z",
  "zone": {
    "id": "zone-id-abc",
    "name": "Downtown",
    "location": "Nairobi",
    "currency": "KES",
    "pricePerLitre": 1.2,
    "supportPhoneNumber": "+254700000000"
  },
  "type": "RECHARGE"
}

Go Struct

type RechargeClientDomain struct {
    ID            string              `json:"id"`
    Amount        float64             `json:"amount"`
    Litres        float64             `json:"litres"`
    PricePerLitre float64             `json:"pricePerLitre"`
    Currency      string              `json:"currency"`
    PaymentMode   string              `json:"paymentMode"`
    PaymentType   string              `json:"paymentType"`
    Status        string              `json:"status"`
    Reason        string              `json:"reason,omitempty"`
    SerialNumber  string              `json:"serialNumber,omitempty"`
    DeviceType    string              `json:"deviceType"`
    Volume        int                 `json:"volume"`
    Device        *DeviceClientDomain `json:"device"`
    Card          *CardClientDomain   `json:"card"`
    User          *UserClientDomain   `json:"user,omitempty"`
    PerformedBy   *UserClientDomain   `json:"performedBy"`
    CompletedAt   *time.Time          `json:"completedAt"`
    CreatedAt     *time.Time          `json:"createdAt"`
    Zone          *ZoneClientDomain   `json:"zone,omitempty"`
    Type          string              `json:"type"`
}

Field Descriptions

Field	Type	Description
id	string	The unique ID for this recharge transaction.
amount	number	The monetary amount of the recharge.
litres	number	The number of litres of water credited.
pricePerLitre	number	The price per litre at the time of the transaction.
currency	string	The currency of the transaction.
paymentMode	string	How the payment was made (e.g., "MOBILE_MONEY", "CARD").
paymentType	string	The type of payment (e.g., "PREPAID").
status	string	The status of the transaction (e.g., "COMPLETED").
device	object	Details about the device.
card	object	Details about the card used.
user	object	The user who checks the account.
performedBy	object	The user who performed the recharge.
completedAt	string	Timestamp (ISO 8601) when the transaction was completed.
createdAt	string	Timestamp (ISO 8601) when the transaction was created.
zone	object	Details about the zone.
type	string	The type of transaction.

---

Water Fetch Receipt (fetches_log)

This feed provides a receipt every time water is fetched from a device.

Payload Structure

JSON Payload

{
  "id": "receipt-id-789",
  "type": "FETCH",
  "user": {
    "id": "user-id-def",
    "firstName": "Jane",
    "lastName": "Doe",
    "username": "janedoe",
    "phoneNumber": "+254712345678",
    "emailAddress": "jane.doe@example.com"
  },
  "serialNumber": "device-serial-number-123",
  "litres": 15.5,
  "pricePerLiter": 0.01,
  "amount": 0.155,
  "createdAt": "2025-12-15T12:00:00Z",
  "zone": {
    "id": "zone-id-abc",
    "name": "Downtown",
    "location": "Nairobi",
    "currency": "KES",
    "pricePerLitre": 1.2,
    "supportPhoneNumber": "+254700000000"
  },
  "device": {
    "id": "device-id-789",
    "name": "Main Street Meter",
    "serialNumber": "device-serial-number-123",
    "status": "ACTIVE",
    "category": "RESIDENTIAL",
    "coordinate": {
      "latitude": -1.286389,
      "longitude": 36.817223
    },
    "zone": {
      "id": "zone-id-abc",
      "name": "Downtown",
      "location": "Nairobi",
      "currency": "KES",
      "pricePerLitre": 1.2,
      "supportPhoneNumber": "+254700000000"
    }
  },
  "card": {
    "id": "card-id-xyz",
    "serialNumber": "card-serial-12345",
    "type": "NFC_CARD",
    "linkedAt": "2025-12-15T10:00:00Z",
    "createdAt": "2025-12-15T10:00:00Z",
    "active": true,
    "customer": {
      "id": "user-id-def",
      "firstName": "Jane",
      "lastName": "Doe",
      "username": "janedoe",
      "phoneNumber": "+254712345678",
      "emailAddress": "jane.doe@example.com"
    }
  },
  "balance": 1219.0,
  "businessId": "business-id-123"
}

Go Struct

type WaterReceiptClientDomain struct {
    ID   string            `json:"id"`
    Type string            `json:"type"`
    User *UserClientDomain `json:"user"`
    SerialNumber string  `json:"serialNumber"`
    Litres       float64 `json:"litres"`
    LitrePrice float64 `json:"pricePerLiter"`
    Amount     float64 `json:"amount"`
    CreatedAt  *time.Time          `json:"createdAt"`
    Zone       *ZoneClientDomain   `json:"zone"`
    Device     *DeviceClientDomain `json:"device"`
    Card       *CardClientDomain   `json:"card"`
    Balance    float64             `json:"balance"`
    BusinessId string              `json:"businessId"`
}

Field Descriptions

Field	Type	Description
id	string	The unique ID for this water fetch receipt.
type	string	The type of event (e.g., "FETCH").
user	object	The user who fetched the water.
serialNumber	string	The serial number of the device.
litres	number	The amount of water fetched in litres.
pricePerLiter	number	The price per litre at the time of fetching.
amount	number	The total cost of the water fetched.
createdAt	string	Timestamp (ISO 8601) when the water was fetched.
zone	object	The zone where the fetch occurred.
device	object	The device used for fetching.
card	object	The card used for fetching.
balance	number	The remaining balance on the account.
businessId	string	The ID of the business associated with this transaction.

---

Handling Webhooks Correctly

Your webhook endpoint should:

1. Accept POST requests
2. Parse JSON payloads
3. Process the event idempotently
4. Respond within 10 seconds

Example Integration

Go

func HandleWebhook(c echo.Context) error {
    // ... (see api.md for full struct definitions)
    return c.NoContent(http.StatusCreated)
}
